Flexible Hose

no image
Blade Hose Screw Joint
Flange Joint
Sanitary Joint
Lorry Joint
Coupling Joint
Pliable Hose Straight
Flange

VALFLON Flexible Hose (Metal Coating)...7041
This is a product that has been bladed to the outside of a PTFE hose with a stainless wire and mounted with connectors on both ends.

VALFLON Pliable Hose...7046-1 7046-2
This is a product in which a PTFE hose is corrugated into spiral shape.
No.7046-1: No flange
       -2: With flange on both ends

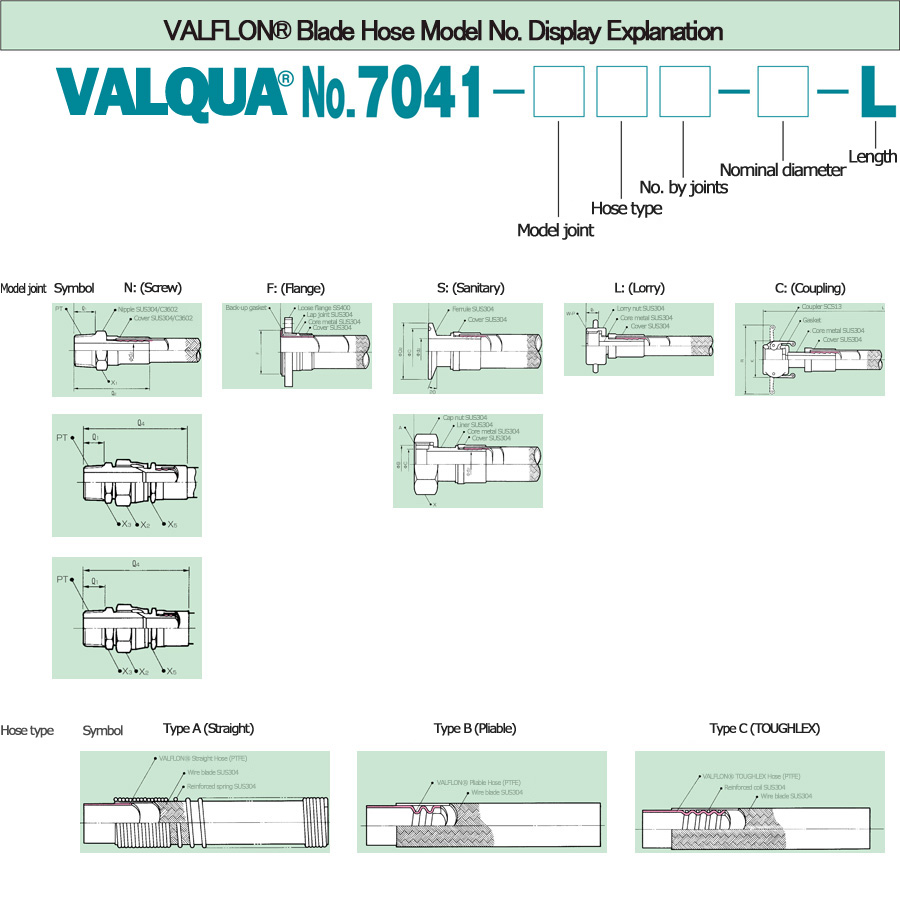

■ Blade hose - Model No. display explanation

flexible_hose_blade_pattern_exp_image
■ Number by joint (combination)
Screw joint 1  ...Male fixed + Male fixed
Screw joint 2  ...Male union + Male fixed
Screw joint 3  ...Male union + Male union
Screw joint 4  ...Male union + Female union
Screw joint 5  ...Female union + Male fixed
Screw joint 6  ...Female union + Female union

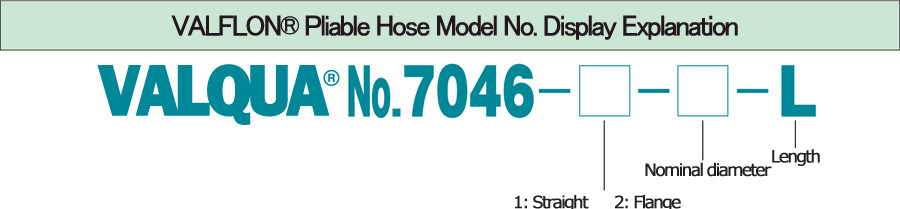

■ Pliable hose - Model No. display explanation

flexible_hose_pliable_pattern_explanation

■ Product lineup

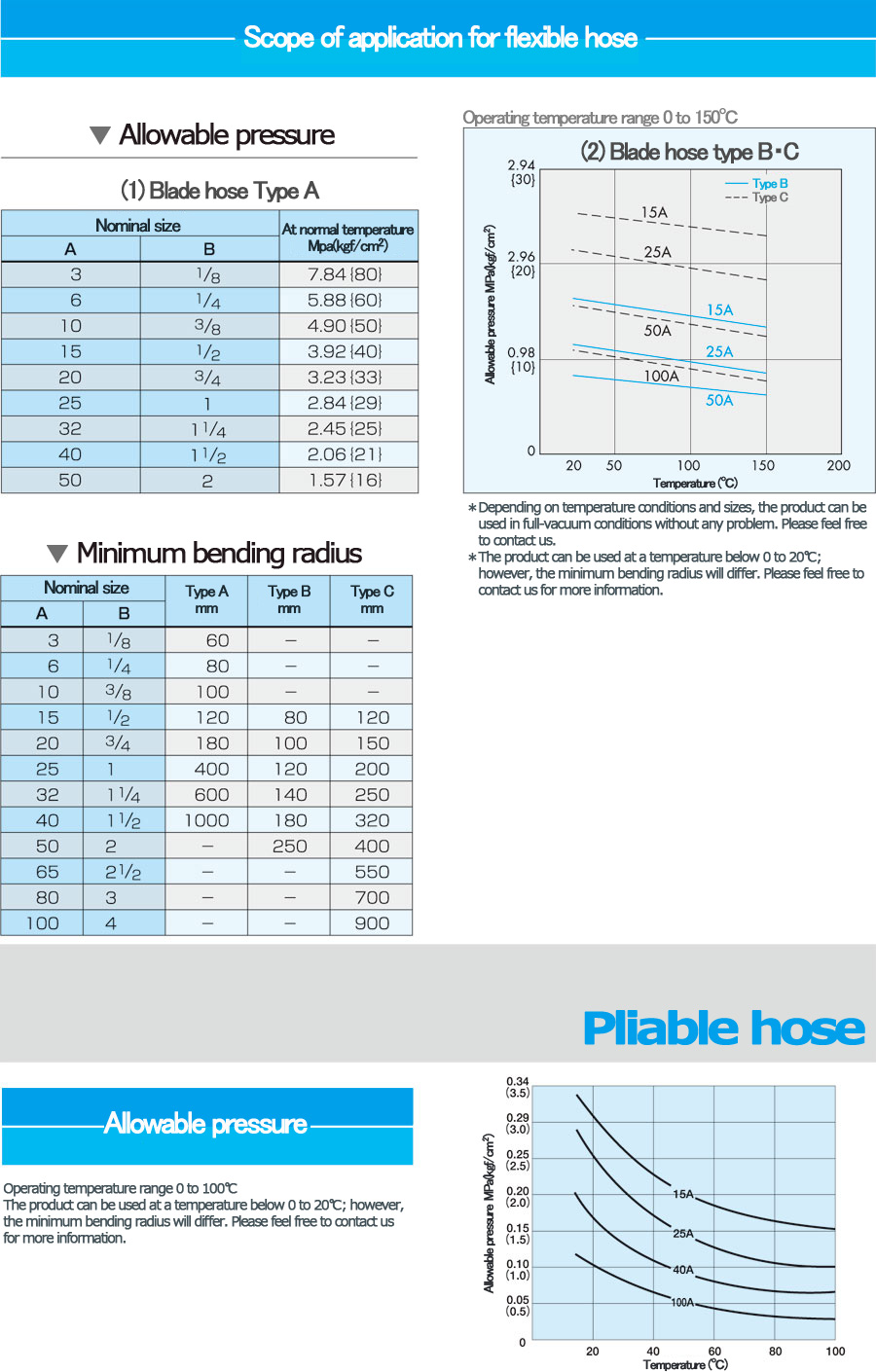

■ Scope of application

flexible_hose_wide_application

■ Applications

■ 7041 Flexible Hose
 This product is used for the absorption of axial difference, angular displacement and vibration such as of vapor, chemical drug, gas (non-combustible) pipe as well as oil hydraulic equipment and food pipe.

■ 7046 Pliable Hose
 This product is used for the absorption of axial difference and angular displacement such as of vapor, chemical drug and piping for food.

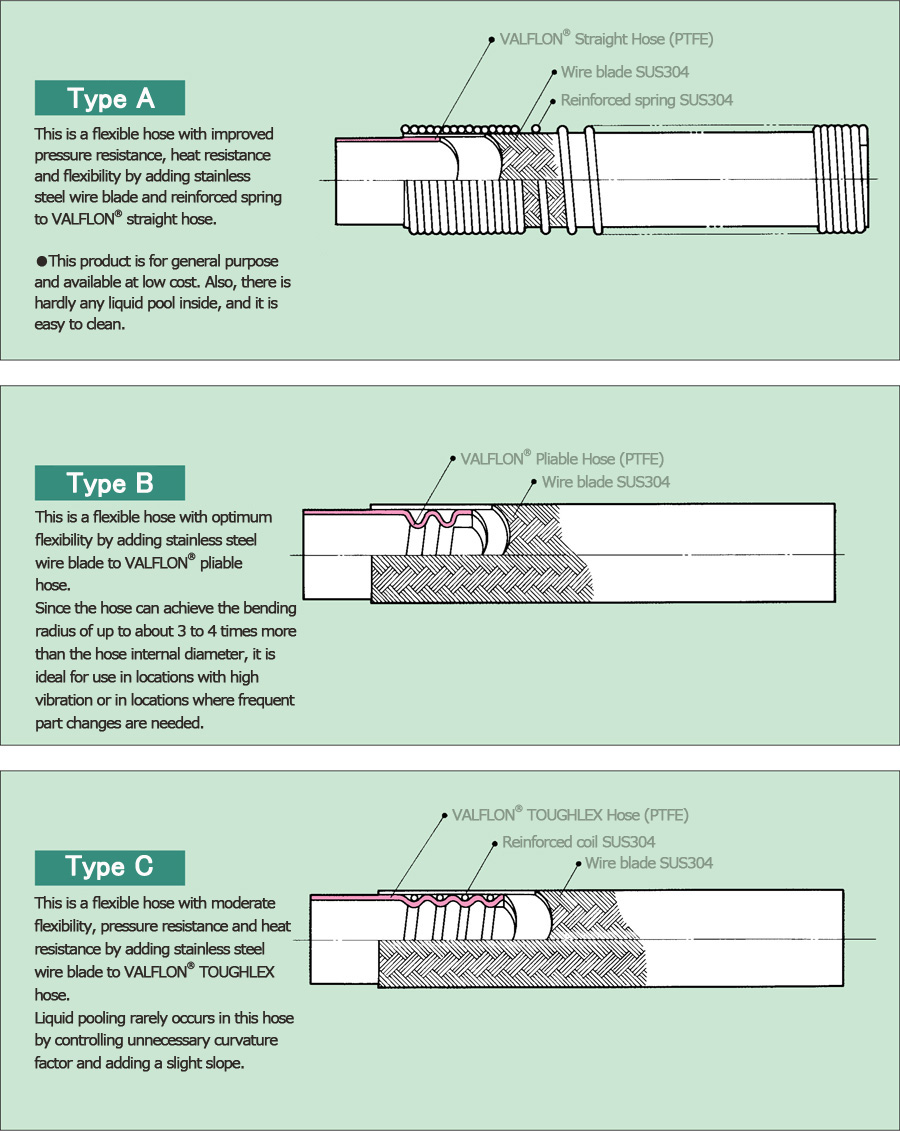

■ Product features

flexible_hose_product_features

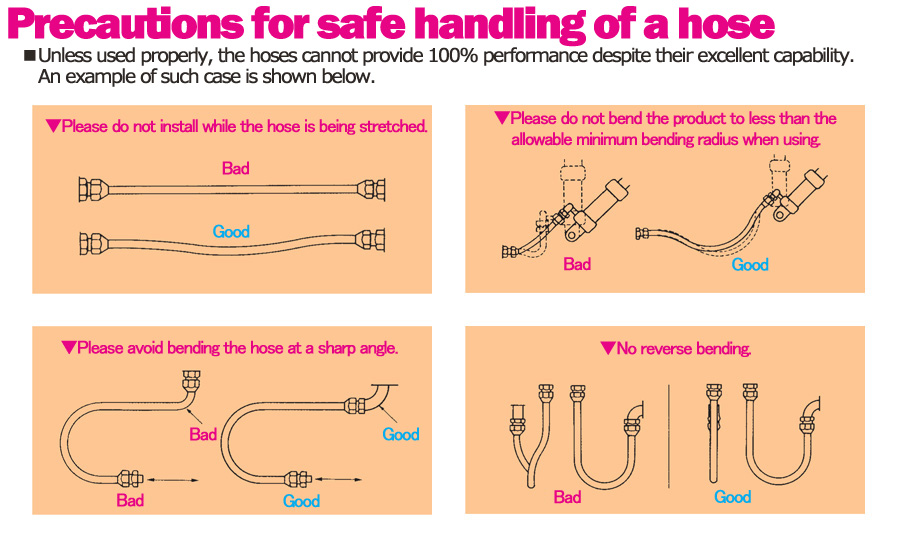

■ Precautions for safe handling of a hose

flexible_hose_notice_image
■ Precautions for safe use
(A) Avoid using a pliable hose for expansion and contraction because, unlike an expansion joint, it will cause structural obstruction.
(B) Store constant containments in straight form as much as possible.

■ FAQ

Q. Do you have hoses in bigger sizes?

A. The maximum size available is 100. This is because the hose function (bending) will be lost when the size is bigger.
