■ Application table ■

In case of metal adapters, tap out in advance so as to be compatible with the male screw at the tip of the flexible shaft. At two positions, in the center of periphery.

Packing Hook

（Packing extraction tool）

Construction

A special, soft shaft made of triple-wound steel wires, which is so constructed so as to allow easy manipulation at a packing space, very small and in the depth of the stuffing box located also at a narrow space
Cork screw. A well hardened sharp screw, so made as to break into packing.

Instructions for use

Screw in the cork screws (No.11 to 13) into the flexible shafts (No.1 to 3), and fasten them tight using a wrench, then screw in two shafts at two points on the opposite peripheral sides of packing as shown in the figure. Now, the packing will come out easily by pulling the handle (Figure A). To remove an adapter, screw in the male screw at the tip of the flexible shaft into a tap hole of the adapter, then pull it out.

Available groove depth

（Packing insertion tool）

Construction

The packing damper made of power spring steel has at its end an R-shaped metal, which fits well into the packing space and the diameter of the sliding parts of the rod and shaft, so as to ensure uniform insertion of packing.

Instructions for use

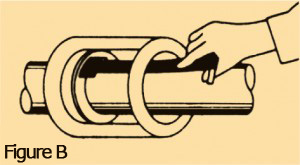

Using the dampers (No.21, 22) that are compatible with the packing groove and the diameter of the sliding parts, carefully push the packing along its periphery for each turn as shown in Figure B, and install it at a proper position.
